Universally, metallic roofing tile sheets of 1 m² or 35 tiles can be instantly laid in just a single movement. Every Aquapan metal roof sheet contains 5 tiles in width and 7 tiles in height. The tiles can be overlapped with each other in height as well as in width without having to clip and/or cut. Fast, easy, simple and moreover, no wastage, that is beneficial to our environment. Installation is easy and quick. There is no need to cut, and the Aquapan range contains everything you need for a project, including barge boards, ridges, end caps, and fixings. Made from lightweight high-grade steel with Aluzinc® coating for incredible strength and weather protection.

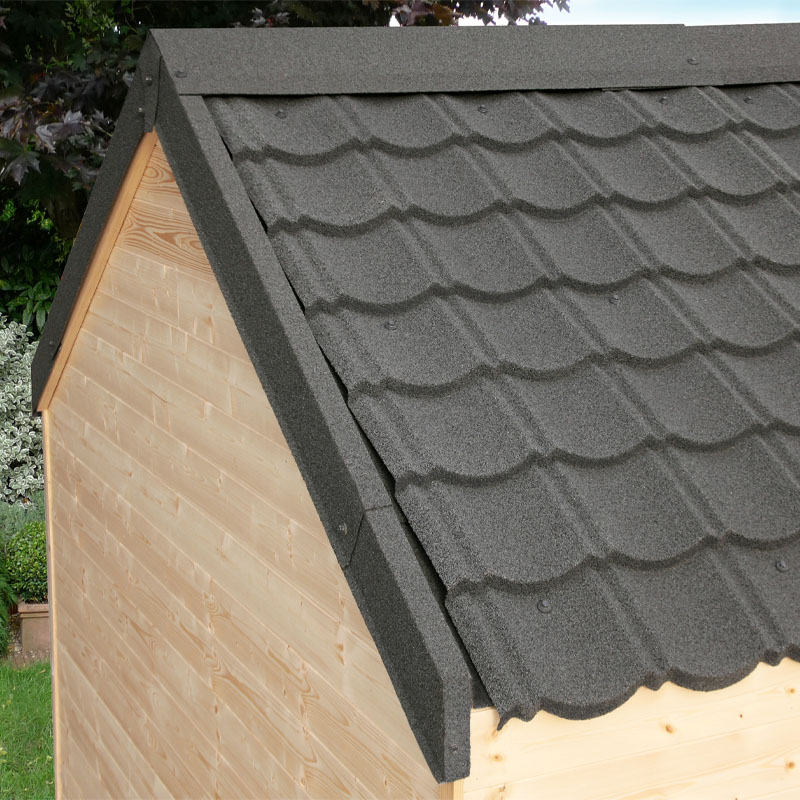

The Metrotile Aquapan Metal Roof Sheet produces a more aesthetic result for simple apex or lean-to roofs on outdoor buildings* such as:
CHALETS, PLAY HOUSES, TOOLSHEDS, GARDEN OFFICES, SUMMERHOUSES, STABLES, ANNEXES, ANIMAL SHELTERS, POOL HOUSES, GARAGES and WORKSHOPS.
*Not intended for use on domestic roofs like houses, extensions, conservatories, etc.

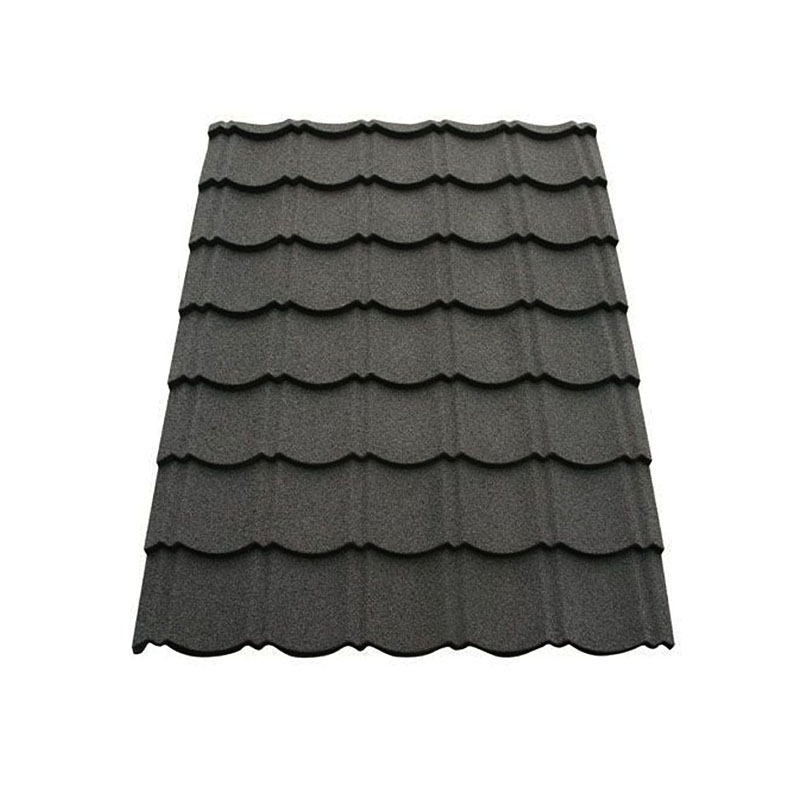

Metrotile Aquapan Metal Roof Sheet Technical Data:
- Overall Size: W 890mm x L 1123mm (1.00m2)
- Cover Size: W 790mm x L 1123mm (0.91m2)
- Number of Tiles in Width: 5
- Number of Tiles in Height: 7
- Weight: 5.71 kg
- Minimum Roof Pitch: 10º
- Fixings: Use Metrotile Self Drilling Screws (9 per sheet)
- Colour: Grey
- Manufactured by Metrotile in Belgium
How many Metrotile Aquapan Metal Roof sheets are needed for a roof…
Simply measure your roof in metres, calculate the area (L x W = Area / m²), then divide the area of your roof by 0.91.
For example, if you have a roof that is 5 metres x 3 metres, you would use the following equation: 5 x 3 = 15, then 15 ÷ 0.91 = 16.48 (rounded up to 17 Aquapan Sheets)*.
